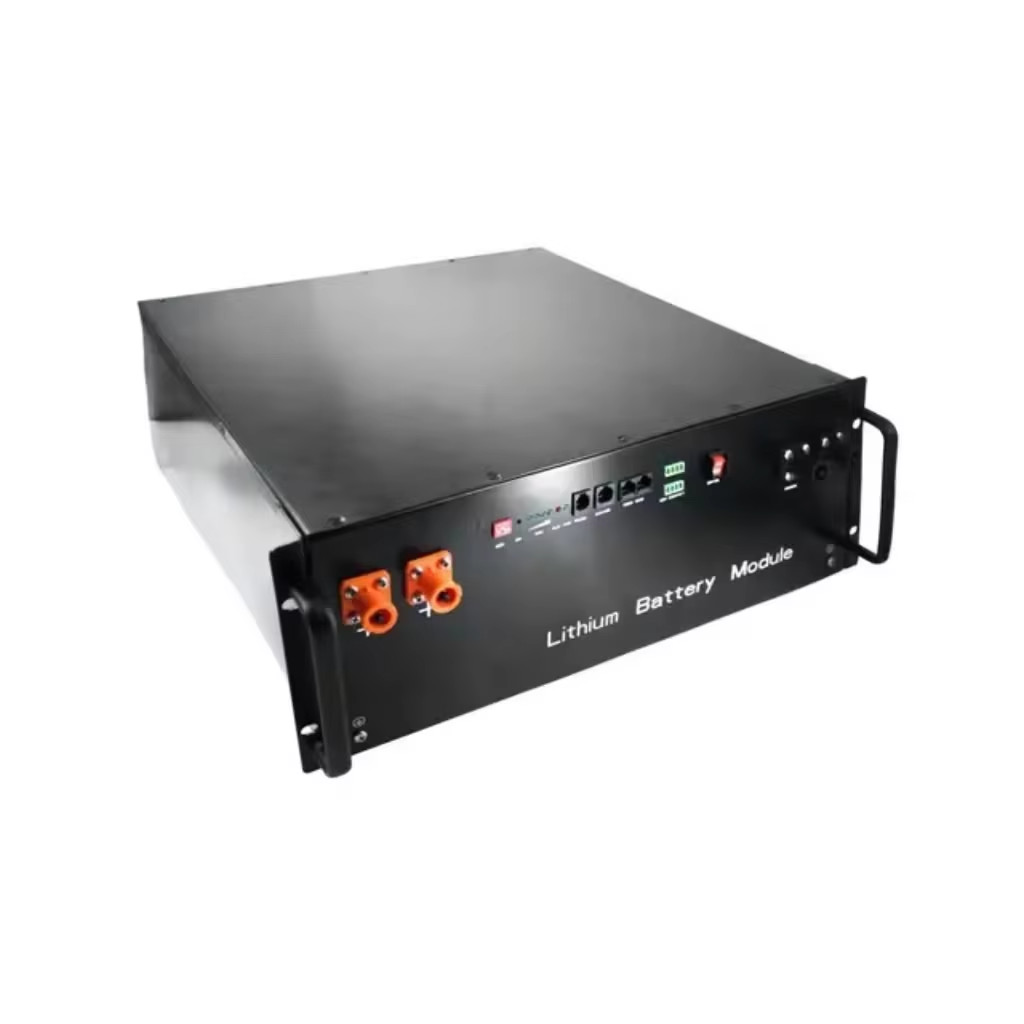

    48V Battery Protection Board Prototype PCB Assembly Lithium Battery Management BMS

    Ask Lasest Price
    Brand Name : XHT
    Model Number : XHTBMS01
    Certification : CE,RoHs,UL,FCC,ISO
    Price : USD70-100/PCS
    Payment Terms : L/C, T/T
    Supply Ability : 5000
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    48V Battery Protection Board Prototype PCB Assembly Lithium Battery Management BMS

    Product Description:

    This product is suitable for the lithium battery communication backup power supply of 16 strings and below, and provides the protection and recovery functions of over voltage, undervoltage, overcurrent, high temperature, low temperature and short circuit. Realize the SOc precise measurement and SOH health status statistics in the process of charging and discharging. Realize the voltage balance during the charging process. Through human-computer interaction, display and set alarm protection parameters such as voltage, current and temperature, store and display the real-time data and historical data of the battery. Has a variety of dormancy and awakening modes. Through the RS 485 bus to achieve the battery room parallel machine communication. Data communication with the host through RS485 communication, and parameter configuration and data monitoring through human-computer interaction of the upper computer software. It can be widely used in indoor and outdoor base stations, such as integrated base station, marginal station, direct discharge station, Acer station, solar base station, micro-grid energy storage base station and other energy storage applications.

    Our BMS provides protection and recovery functions for battery packs, such as overvoltage, undervoltage, overcurrent, high temperature, low temperature, short circuit, and reverse charger connection, can achieve voltage balance during standby and charging processes. Safe and reliable.

    Product Paramenters
    Basic Configuration
    Basic Function
    Rated capacity
    100AH
    Balancing
    Function
    Balance type
    Passive balance
    Strings
    15 S
    Balance current
    60mA
    Rated charging and discharging current
    100A
    Temperature Sampling
    Cell temperature
    15 channels
    Sampling accuracy±2°C
    Maximum charging current limit
    10A☑
    20A □
    MOS temperature
    1 channel
    Sampling accuracy±2°C
    Maximum charging voltage
    58V
    Ambient temperature
    1 channel
    Sampling accuracy±2°C
    Communication
    Communication port 1
    RS485_1 Parallel connection in battery pack
    Communication port 2
    RS485_2 Display
    Other functions
    (YES is for built-in functions; NO is for optional functions )
    Pre-charging function
    No□ YES☑
    Data storage
    EEPROM(1000 Pcs) FLASH(10000+)
    Reverse polarity protection
    No□ YES☑
    Buzzer
    No□ YES☑
    LED indicator
    No□ YES☑
    Dry contact
    No□ YES☑
    Weak current switch
    No☑ YES□
    Reset/Sleep/Wake-up
    No□ YES☑
    Display
    No□ Switching between Chinese and English ☑
    Releaser (main power secondary protection)
    No☑ YES□
    Heating film
    No☑ YES□ Secondary protection□
    Gyroscope
    No☑ YES□
    Bluetooth /GPS
    No☑ YES□
    Electrical Attributes
    Item
    Min
    Max
    Type
    Unit
    Normal operating voltage
    36
    60
    52
    V
    Normal charging voltage
    42
    60
    54
    V
    Operating temperature range
    -20
    70
    25
    Operating humidity range
    10
    85
    /
    %
    Continuous charging current
    /
    100
    /
    A
    Continuous discharging current
    /
    100
    /
    A
    Discharge output internal resistance
    <10
    Normal operation power consumption
    <35
    mA
    Static total power consumption
    /
    170
    50
    uA
    Basic Parameter Configuration
    Item
    Settable
    or Not
    Parameter
    Default Value
    Remark
    Charging current limiting
    NO
    Charging current limit value
    10A
    Normal variation:±1A
    YES
    Passive charging current limiting
    Mode 4: Charging Overcurrent Protection Open 10A current limit
    When the charging current exceeds the charging overcurrent protection current (1 or 2), and reaches the delay time, it will trigger "charging overcurrent protection (1 or 2) "; the same time, it will turn off the charging MOS and start the current-limiting charging.
    Please refer to setting mode for charging current
    Dormant condition managementg value
    YES
    Dormant voltage value
    3.3V
    Normal variation:±0.05V
    YES
    Dormancy delay time
    24H
    /
    Balancing
    YES
    Start balancing voltage
    3.45 V
    When the charging current is > 1.45A,
    YES
    Start balancing voltage differential
    20mV
    The starting voltage and
    opening pressure differential are both met.
    NO
    Balancing current
    /
    Normal variation:40-100mA
    Fully charged setting
    YES
    Constant voltage
    52.2V±0.5V
    When charging at constant voltage, if the overall voltage is greater than the constant voltage value and the current is less than the constant current value, BMS will consider that the battery capacity is full and the charging MOSFET will be cut off.
    YES
    Constant current
    1.5A±0.5A
    Capacity setting
    YES
    Rated capacity
    100Ah
    /
    Remaining capacity
    70Ah
    Protection Parameter Configuration 1
    Item
    Default State
    Settable or Not
    Parameter
    Default Value
    Remark
    Cell overvoltage protection
    ON
    YES
    protection voltage
    3.85 V
    Normal variation:±0.05V
    protection delay time
    1000 mS
    Normal variation:500~3000 mS
    protection recovery voltage
    3.34 V
    Normal variation:±0.05V
    Cell undervoltage protection
    ON
    YES
    protection voltage
    2.50 V
    Normal variation:±0.05V
    protection delay
    1000 mS
    Normal variation:500~3000mS
    protection recovery voltage
    3.0 V
    Normal variation:±0.05V
    Overall overvoltage protection
    ON
    YES
    protection voltage
    55.5 V
    Normal variation:±0.5V
    protection delay time
    1000 mS
    Normal variation:500~3000mS
    protection recovery voltage
    51.0 V
    Normal variation:±0.5V
    Overall undervoltage protection
    ON
    YES
    protection voltage
    40.5 V
    Normal variation:±0.5V
    protection delay
    1000 mS
    Normal variation:500~3000mS
    protection recovery voltage
    45.0 V
    Normal variation:±0.5V
    Short circuit protection
    ON
    NO
    Short circuit protection current
    310 A
    Normal variation:310±10A
    ON
    /
    Protection condition
    Load short circuit
    /
    ON
    NO
    Short circuit protection delay time
    ≤500us
    /
    ON
    /
    Short-circuit protection recovery condition
    Charging or manual recovery
    /
    Ambient temperature protection
    ON
    YES
    over temperature protection
    65 ℃
    Normal variation:±2℃
    protection recovery
    60 ℃
    Normal variation:±2℃
    protection delay
    4000 mS
    Normal variation:
    3500-4500 mS
    under temperature protection
    -20 ℃
    Normal variation:±2℃
    protection recovery
    -10 ℃
    Normal variation:±2℃
    protection delay
    4000 mS
    Normal variation:
    3500-4500 mS
    Protection Parameter Configuration 2
    Item
    Default State
    Settable or Not
    Parameter
    Default Value
    Remark
    Overcurrent protection
    ON
    YES
    Charging overcurrent protection current 1
    60 A
    Normal variation:±2A
    ON
    YES
    Delay time of charging overcurrent protection 1
    4000 mS
    Normal variation:2000~6000mS
    ON
    YES
    Charging overcurrent protection current 2
    120 A
    Normal variation:±3A
    ON
    YES
    Delay time of charging overcurrent protection 2
    1000 mS
    Normal variation:500~3000mS
    ON
    YES
    Discharge overcurrent protection current 1
    105 A
    Normal variation:±2A
    ON
    YES
    Delay time of discharge overcurrent protection 1
    1000 mS
    Normal variation:500~3000mS
    ON
    YES
    Discharge overcurrent protection current 2
    120 A
    Normal variation:±3A
    ON
    YES
    Delay time of discharge overcurrent protection 2
    500 mS
    Normal variation:100~1500mS
    Cell temperature protection
    ON
    YES
    Charging over temperature protection
    55 ℃
    Normal variation:±2℃
    ON
    YES
    Charging over temperature protection recovery
    50 ℃
    Normal variation:±2℃
    ON
    YES
    Charging over temperature protection delay
    4000 mS
    Normal variation:3500-4500mS
    ON
    YES
    Discharge over temperature protection
    60 ℃
    Normal variation:±2℃
    ON
    YES
    Discharge over temperature protection recovery
    55℃
    Normal variation:±2℃
    ON
    YES
    Discharge over temperature protection delay
    4000 mS
    Normal variation:3500-4500mS
    ON
    YES
    Charging under temperature protection
    0 ℃
    Normal variation:±2℃
    ON
    YES
    Charging under temperature protection recovery
    3 ℃
    Normal variation:±2℃
    ON
    YES
    Charging under temperature protection
    delay
    4000 mS
    Normal variation:3500-4500mS
    ON
    YES
    Discharge under temperature protection
    -20 ℃
    Normal variation:±2℃
    ON
    YES
    Discharge under temperature protection
    recovery
    -15℃
    Normal variation:±2℃
    ON
    YES
    Discharge under temperature protection
    relay
    4000 mS
    Normal variation:3500-4500mS
    MOS over temperature protection
    ON
    YES
    MOS Over temperature protection
    105 ℃
    Normal variation:±2℃
    MOS Over temperature off
    95 ℃
    Normal variation:±2℃
    MOS Over temperature delay
    1000 ms
    Normal variation:500-3000mS


    Applications:

    XHT-PCBA-9 has received various certifications such as ISO, IATF16949, and RoSH, which ensure the product's high quality and reliability. It is manufactured in China and has a low MOQ, making it an excellent choice for small to medium-sized businesses.

    The product provides complete EMS printed circuit board assembly services that meet the highest standards of quality and efficiency. It is suitable for use in various applications, including solar power systems, industrial controls, and automotive electronics.

    With a product weight of just 1 kg, XHT-PCBA-9 is lightweight and easy to handle. It has an output frequency of 50Hz / 60Hz and a delivery time of 1-2 weeks, making it a fast and reliable option for businesses looking for quick turnaround times.

    XHT-PCBA-9 comes in a carton with foam bag packaging, ensuring that the product arrives at its destination in perfect condition. The payment terms are flexible, with T/T, Western Union, and MoneyGram accepted, making it easy for businesses to purchase the product.

    In conclusion, XHT-PCBA-9 is an excellent choice for businesses looking for a high-quality EMS PCB Assembly product. With its certifications, low MOQ, fast delivery time, and flexible payment terms, it is a reliable and efficient option for various applications.

    Support and Services:

    Our EMS PCB Assembly product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our team of experts is available to provide assistance with installation, configuration, troubleshooting, and maintenance. We also offer repair and replacement services in case of any defects or malfunctions in the product. In addition, we provide regular software updates and upgrades to keep the product up-to-date with the latest technologies and features. Our goal is to ensure that our customers have a seamless experience with our EMS PCB Assembly product and maximize their return on investment.

    Packing and Shipping:

    Product Packaging:

    The EMS PCB Assembly product will be packaged securely in anti-static bags and placed in a sturdy cardboard box with protective foam inserts.

    Shipping:

    We offer worldwide shipping for the EMS PCB Assembly product. Shipping options include standard, expedited, and express delivery. Customers can choose their preferred shipping method during the checkout process.

    All shipments will be tracked and customers will receive a tracking number once the product has been shipped. Shipping fees will be calculated at checkout based on the destination and selected shipping method.

    FAQ:

    Q1: What service do you have?

    XHT: We provide turnkey solution including PCB design, Software development, PCB Assembly, Enclosure design, Mold-making,Plastic injection, Finish product assembly and function testing.

    Q2: What are the main products of your PCB/PCBA services?

    XHT: Our PCB/PCBA services are mainly for the industries including Industrial control, Home appliances main boards,automotive electronics, Consumer electronics, Medical equipment, bank equipment, smart home etc.

    Q3: Is XHT a factory or trade company?

    XHT: XHT is a 20-year experienced professional contract manufacturer to provide one stop Turnkey PCB assembly and electronics manufacturing service.

    Q4: Can we inspect quality during production?

    XHT: Yes, we are open and transparent on each production process with nothing to hide. Customers are welcome to inspect our production process and check in house.

    Q5: How can we ensure our information should not let third party to see our design?

    XHT: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.

    Q6: What files required to get quotation from you?

    XHT: For OEM PCBA projects, please provide the Gerber data/files and indication of related technical requirements as well as any special requirement if you have; For ODM projects, please provide Function List, so our engineer team can work on it.

    Q7: What is standard delivery term?

    XHT: Delivery terms of EXW, FCA, FOB, DDU etc. are all available based on each quote.

    Q8: How long does it take for PCBA quote?

    XHT: Depend on project's complexity. Normally 1-2 week is enough for our engineers to evaluate.

    Q9: Do you have any minimum order quantity (MOQ) requirement?

    XHT: No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
